Pathway Platinum Pathway, Pharmacokinetics/Pharmacodynamics

Pharmacokinetics, Pharmacodynamics

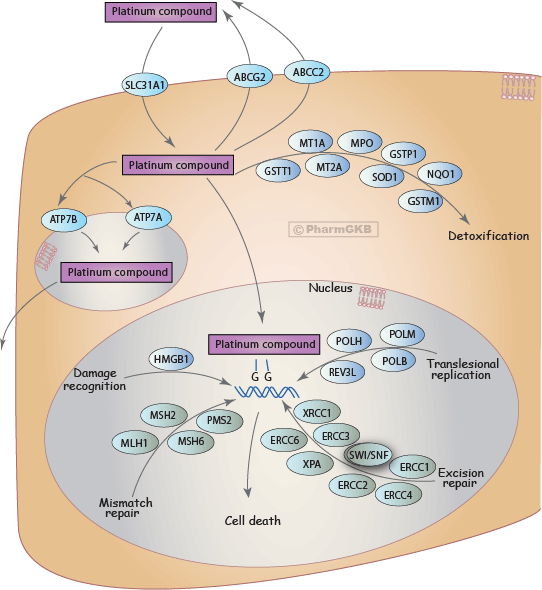

Representation of the candidate genes involved in the metabolism of platinum containing drugs.
Platinum Pathway, Pharmacokinetics/Pharmacodynamics
platinum platinum platinum platinum adduct slc31a1 abcg2 abcc2 atp7b atp7a mt1a mpo gstp1 nqo1 slco6a1 gstt1 mt2a sod1 gstm1 hmgb1 polh polm rev3l polb msh2 mlh1 pms2 msh6 xrcc1 ercc3 swi/snf ercc1 ercc6 xpa ercc2 ercc4
clickable pathway icons

Description

Platinum (Pt)-containing drugs are currently used in the clinic for treating cancer. Platinum is the 78th element in the periodic table and has been used in medicine since the mid-1960's. The major Pt-containing drugs are cisplatin, carboplatin, and oxaliplatin. Platinum-based drugs are now the largest class of drugs used to treat cancer. They destroy cancerous cells by interfering with the DNA, via inter- and intrastrand crosslinks, and DNA-protein crosslinks, thereby preventing cell division and growth.

Although platinum-based drugs are the most widely used in cancer treatment, many tumors are completely resistant to these drugs and no clinical response is attained. The difference in clinical response is thought to be due, in part, to the pharmacokinetics of these drugs. The influx of platinum drugs into the cell is regulated by SLC31A1 (CTR1) and the efflux by ABCC2 (MRP2), ATP7A, and ATP7B. ATP7A is involved in the Cu transport from cytoplasm into trans-Golgi network where it serves to export Cu from the cell via the vesicular secretory pathway. ATP7B is also an exporter of copper and is localized to the trans-Golgi network. When the copper content of the cell increases, ATP7A moves from trans-Golgi network to the plasma membrane and ATP7B relocates to intracellular vesicular compartments, presumably involved in the export pathway. Once platinum is inside the cell, the primary anti-tumor mechanism is the formation of Pt-DNA adducts which lead to cell-cycle arrest and apoptosis. HMGB1 is important in the cell recognition of these Pt-DNA adducts, and therefore signals cellular response to these adducts. Genes involved in mismatch repair, such as MSH6 and MLH1, decrease the cell-sensitivity to these drugs. In addition, nucleotide excision repair is mediated by XRCC1, ERCC1, ERCC2, and XPA, and known variants in these genes affect patient's response to Pt-based drugs [Articles:16931584, 16880786]. These genes act by detecting single strand breaks and removing proteins from the DNA helix, which then becomes more accessible to repair enzymes. POLH and POLB variants have been shown to provide tolerance to platinum-based drugs, and therefore represent an important determinant of the cellular response to platinum drugs. In addition, there are several genes, such as MPO, SOD1, GSTM1, NQO1, GSTP1, and MT, that are responsible for lowering the intracellular concentration of platinum drugs and therefore play a key role in cellular resistance to these drugs.

Patients who carry certain alleles of these detoxification-related genes have been shown to have differences in survival due to variation in drug sensitivity and adverse drug reactions [Articles:11081456, 15102663, 16342067, 10709094].

Authors: Sharon Marsh, Howard McLeod, Eileen Dolan, Sunita J. Shukla, Cara A. Rabik, Li Gong, Tina Hernandez-Boussard, Xing Jian Lou, Teri E. Klein, Russ B. Altman.
Citation:
Marsh Sharon, McLeod Howard, Dolan Eileen, Shukla Sunita J, Rabik Cara A, Gong Li, Hernandez-Boussard Tina, Lou Xing Jian, Klein Teri E, Altman Russ B. "Platinum pathway" Pharmacogenetics and genomics (2009).
If you would like to reproduce this PharmGKB pathway diagram, please acknowledge the copyright to PharmGKB and state that permission has been given by PharmGKB and Stanford University. Also, please send a brief email to feedback@pharmgkb.org to inform us of which pathway diagram you are using and for what purpose.
History:
Therapeutic Categories:
  • Anticancer agents

Entities in the Pathway

Genes (13)

Drugs/Drug Classes (1)

Relationships in the Pathway

Arrow FromArrow ToControllersPMID
Platinum compounds
Platinum compounds Platinum compounds ABCC2, ABCG2 11323161, 12839578, 15014021, 16213010
Platinum compounds Platinum compounds SLC31A1 12391279, 15229296, 15634647, 16297532, 16847145, 16951202
Platinum compounds Platinum compounds ATP7A, ATP7B 11605050, 12216079, 12438251, 14676106, 15213293, 15269138, 16297532
